2005 Corvette A/C and Door-Release Diagnostics in Sandy Springs

4A Auto A/C & Repair evaluated this 2005 Chevrolet Corvette in Sandy Springs, Georgia, for A/C compressor clutch damage and an exterior door-release problem. The evaluation included clutch and line inspection, refrigerant quality testing, an oil-sample inspection, and key-fob signal testing with a scan tool.

By 4A Auto A/C & Repair

Published Oct 19, 2026Updated Oct 19, 2026Mileage at evaluation: 61,598 miles

✓ Diagnosis documentedRepairs pendingPost-repair results to follow

CUSTOMER-REPORTED CONCERN

Compressor noise and a door that will not open.

The customer reported that the A/C compressor was making a lot of noise and the driver door would not open with the key fob, requiring the manual release.

These are the reported symptoms. Our testing below separates the working key-fob signal from the faulty driver-side exterior door-release switch.

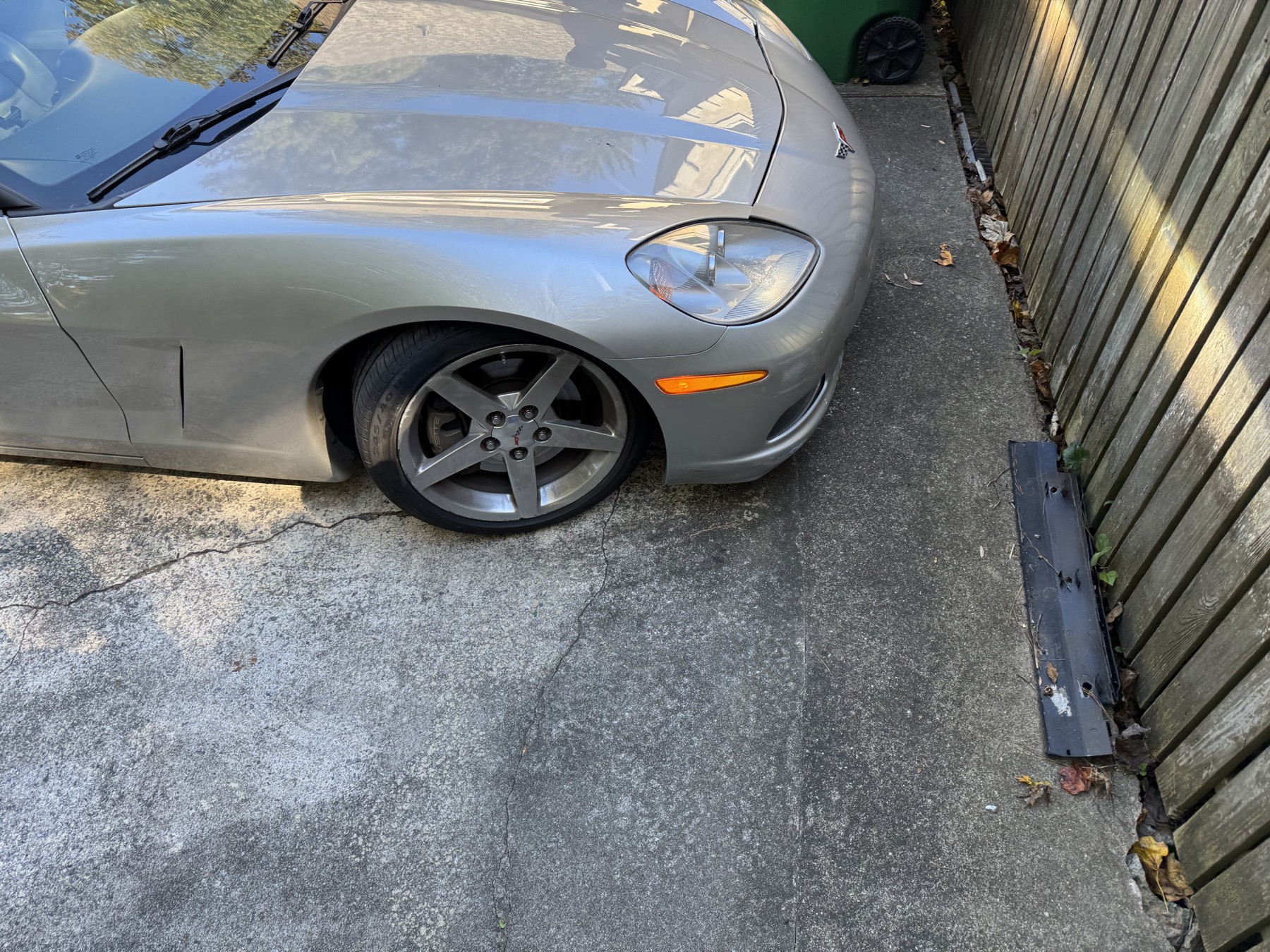

Front-quarter view of the silver 2005 Chevrolet Corvette evaluated for A/C and exterior door-release faults. — 2005 Chevrolet Corvette presented for A/C and door-release diagnosis in Sandy Springs.

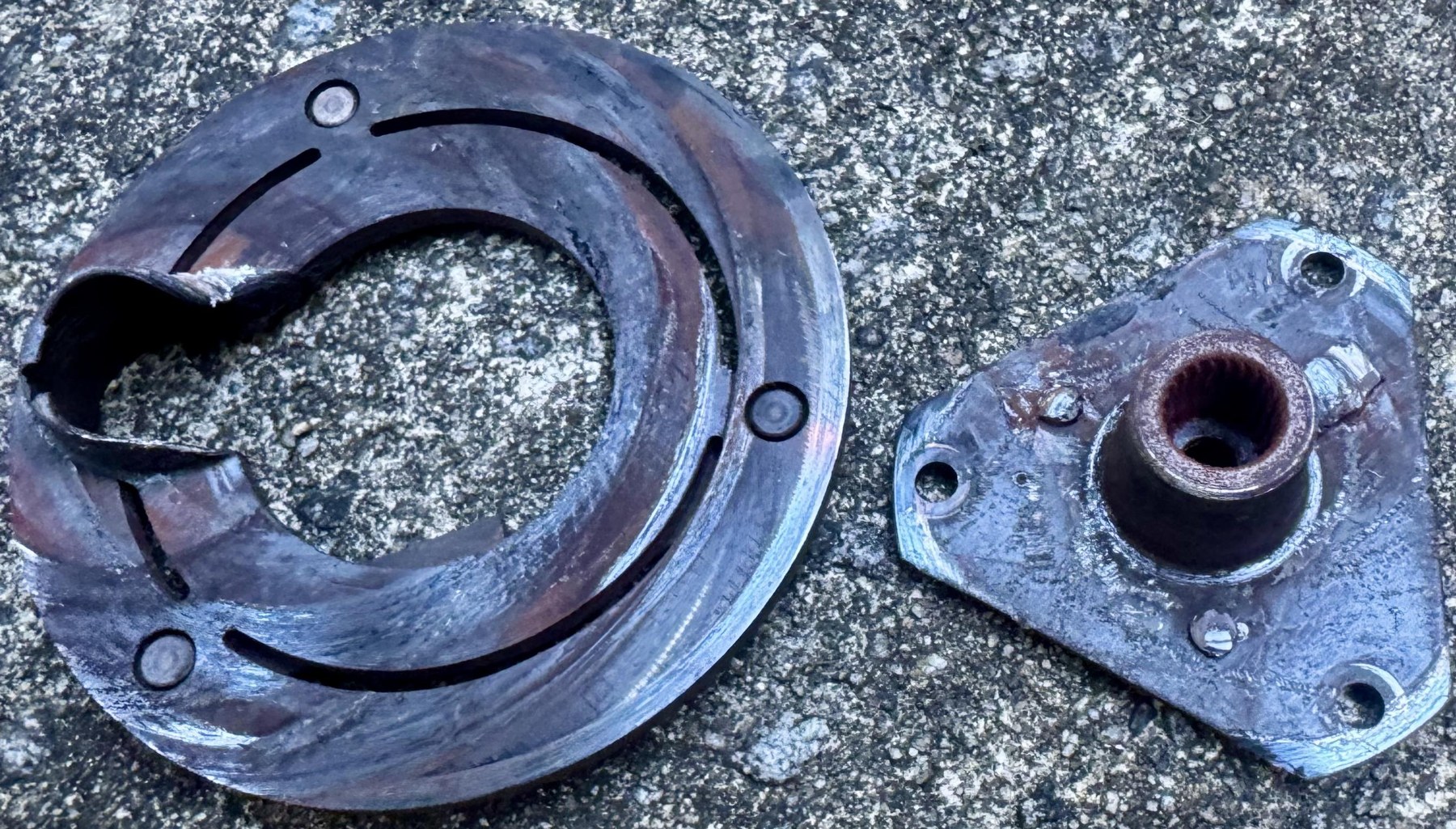

Removed Corvette A/C clutch face with a large heat-damaged opening beside its separated hub. — **01 / Clutch face** Removed components show the damaged face and separated hub.

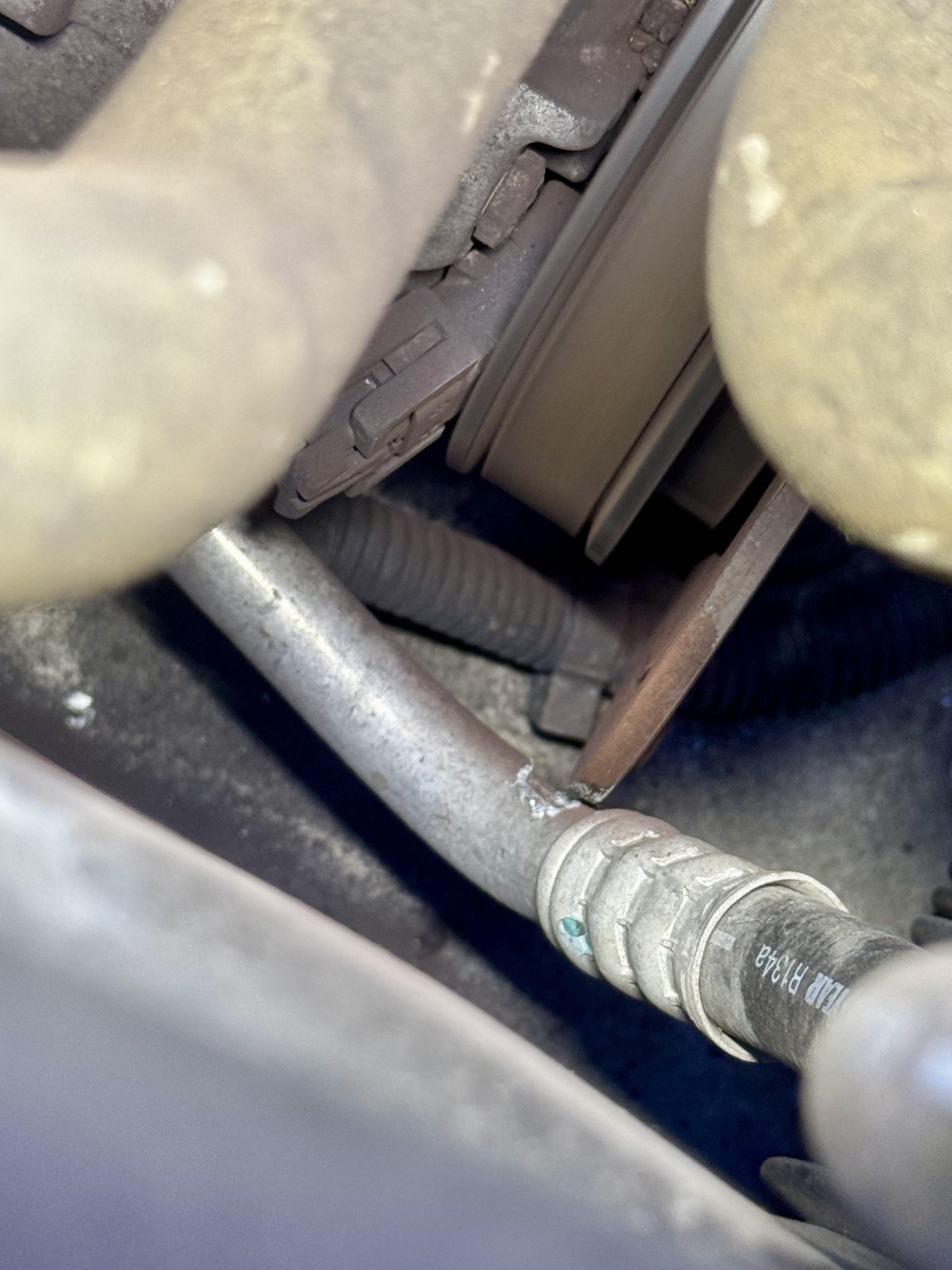

Corvette A/C line beside the loose clutch face, showing the contact area being monitored. — **02 / Adjacent line** The adjacent line is not currently leaking. Its condition will be monitored.

01 / AIR CONDITIONING

A/C Compressor Clutch Inspection

The A/C compressor clutch-face retaining bolt came off, and two attachment points failed. The loose face struck the adjacent A/C line. Prolonged rubbing generated enough heat to melt a hole through the clutch face.

The clutch face needs replacement. The adjacent A/C line is not currently leaking. A wait-and-see approach is warranted: we will monitor its condition, with replacement considered if needed. The remaining clutch components still need inspection for additional damage.

Watch the component inspection clips

Silent clip: the removed clutch face and hub, showing the damaged opening.

Silent clip: the adjacent A/C line and clutch-face contact area. The line is not currently leaking and will be monitored.

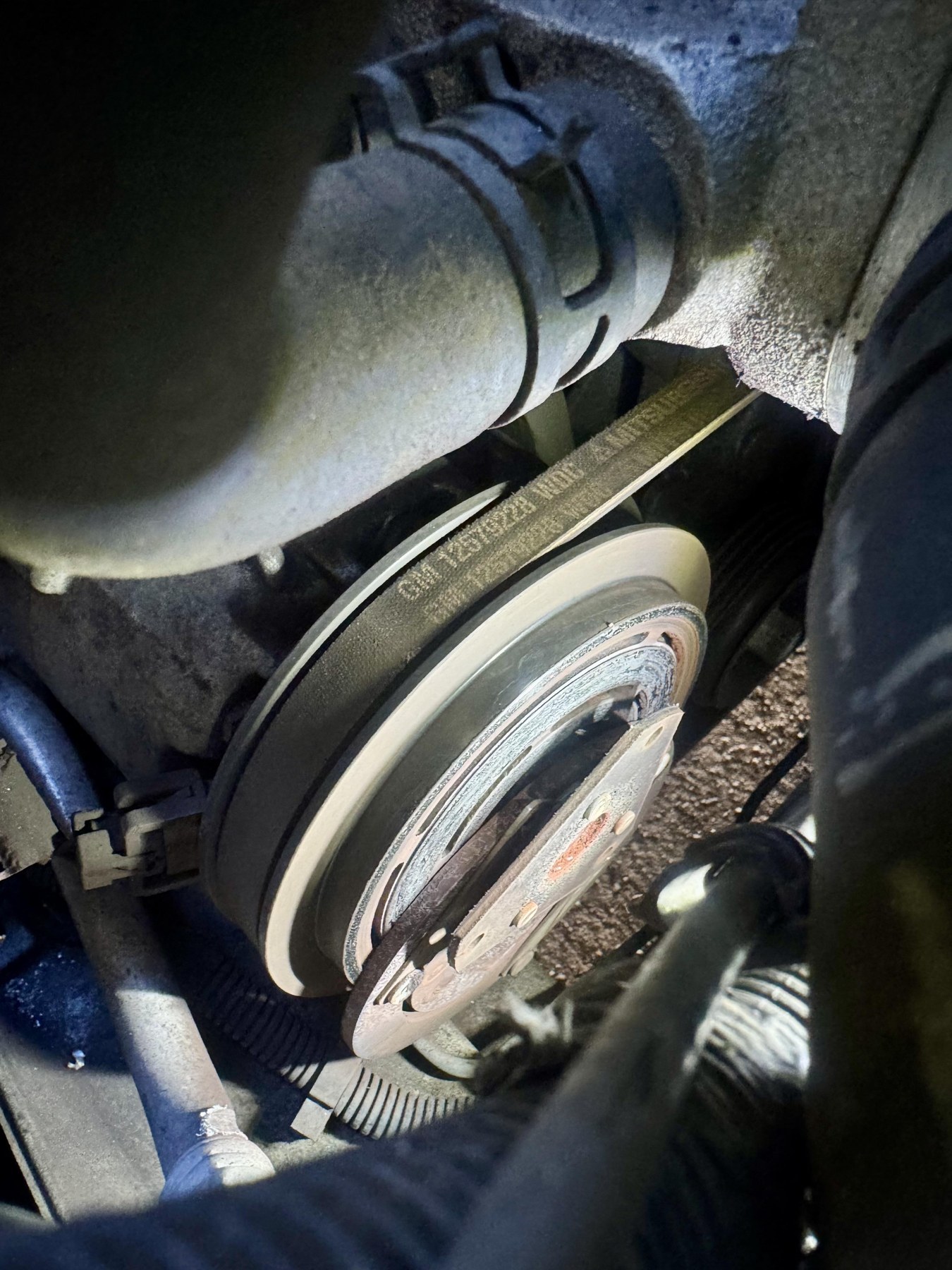

Corvette compressor clutch viewed in place, with the clutch face displaced beside the pulley. — The clutch assembly as found in the vehicle, before the removed-component inspection.

Intact reference and actual failure

The reference shows the hub and clutch face connected together. The Corvette’s removed components show the separated hub and the opening caused by prolonged rubbing. Replacement is still pending.

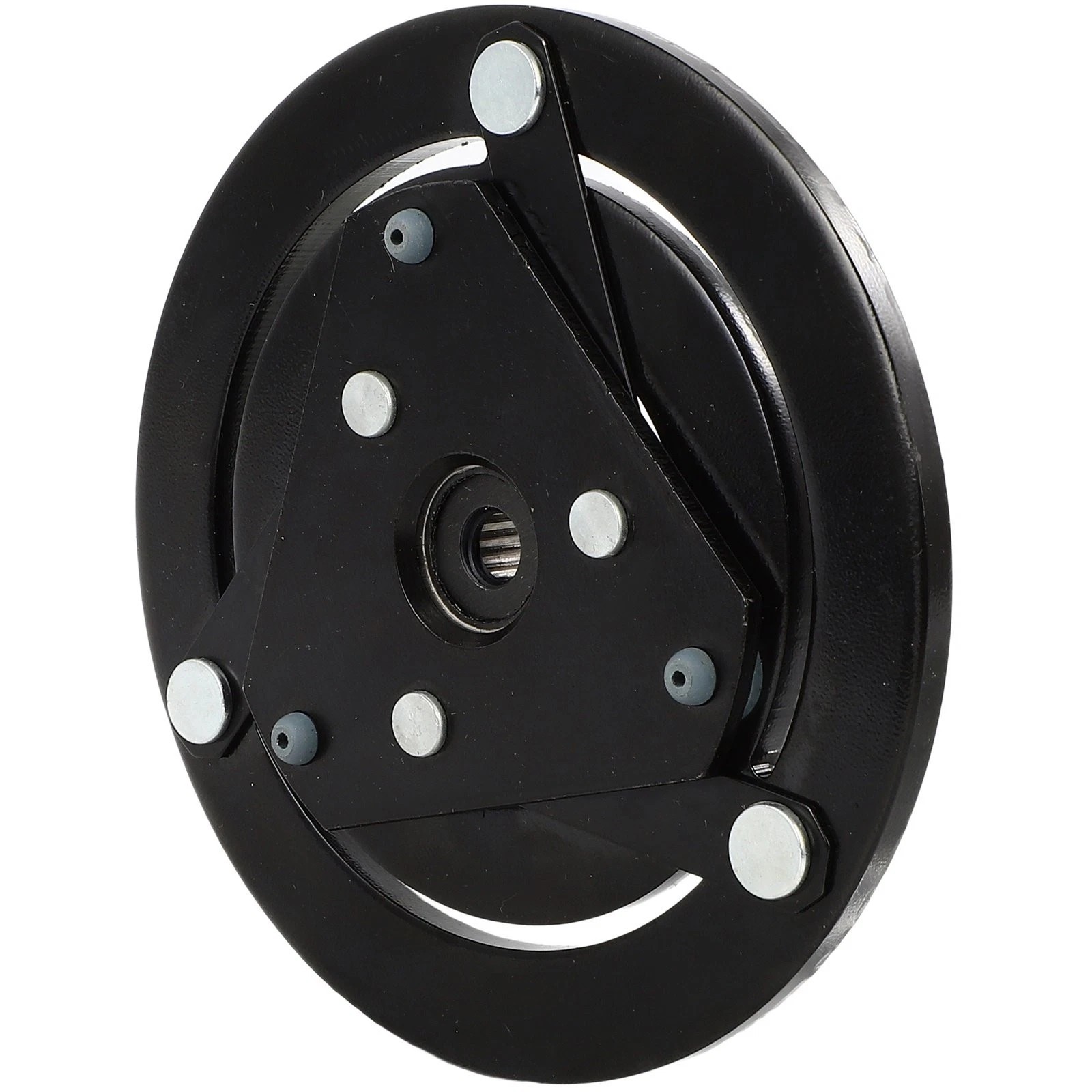

Intact A/C clutch-face reference with the center hub connected to the outer face by three attachment straps. — **Intact reference.** Intact reference supplied for comparison. This is not a photograph of a completed repair on this Corvette.

Actual removed Corvette clutch face with a heat-damaged opening and its separated hub. — **Actual Corvette damage.** Removed clutch face and separated hub. The clutch face needs replacement.

More views of the clutch-face failure

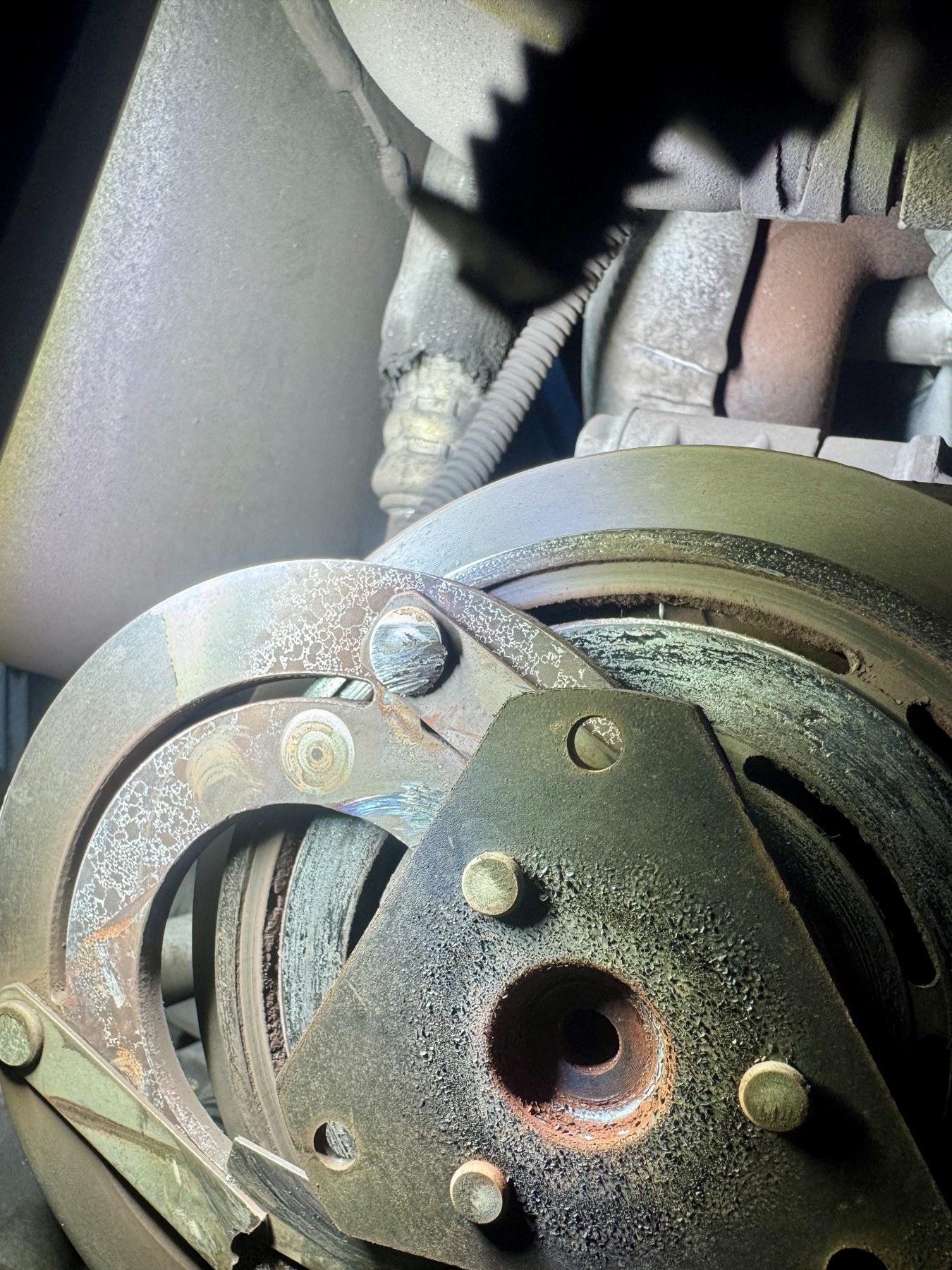

Close view of the failed Corvette A/C clutch face and hub beside the pulley. — Closer view of the failed clutch face and hub at the compressor.

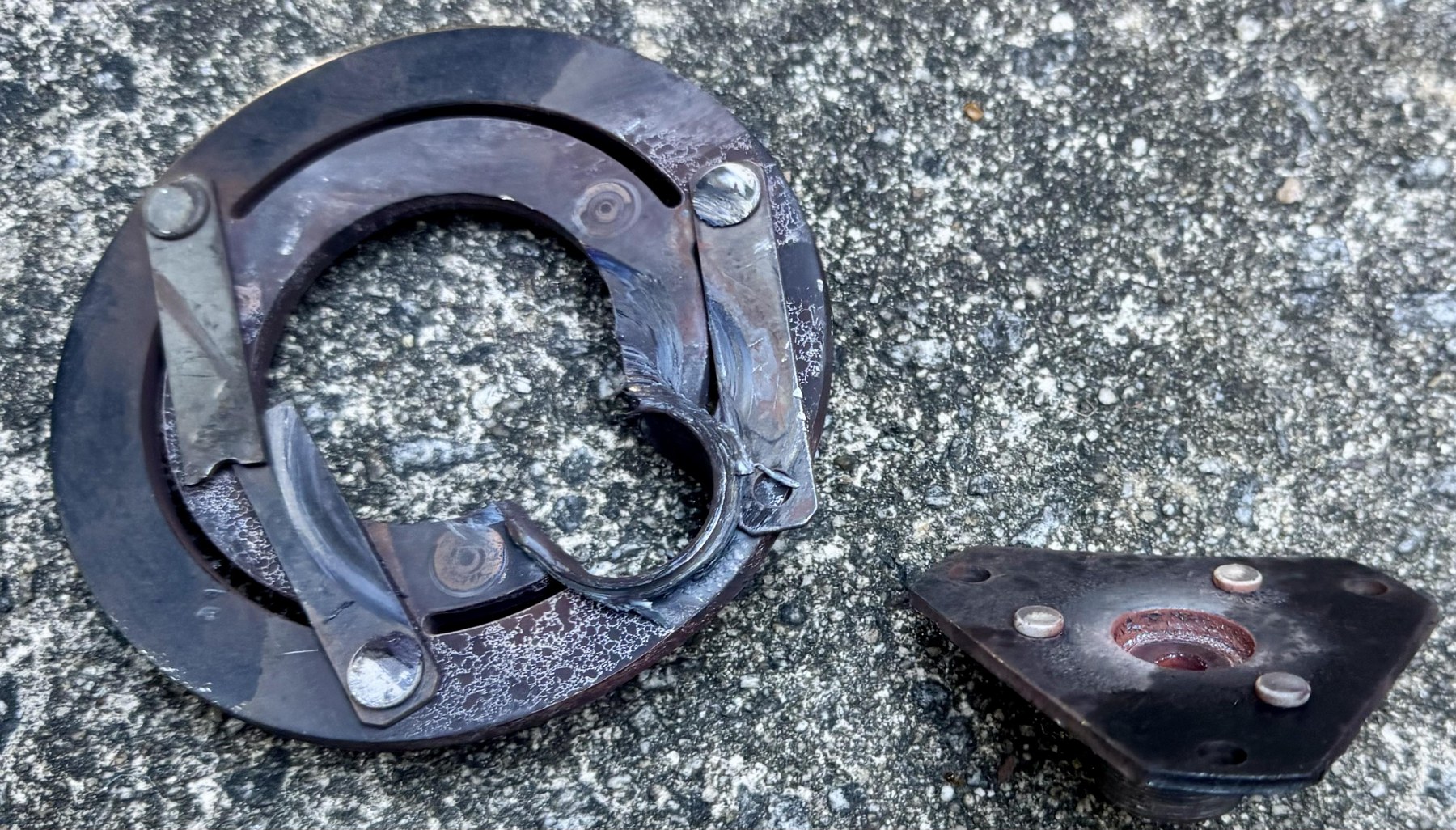

Removed Corvette clutch face with a damaged opening and the separated hub alongside it. — Another angle of the removed clutch face and separated hub, showing the damaged opening and attachment areas.

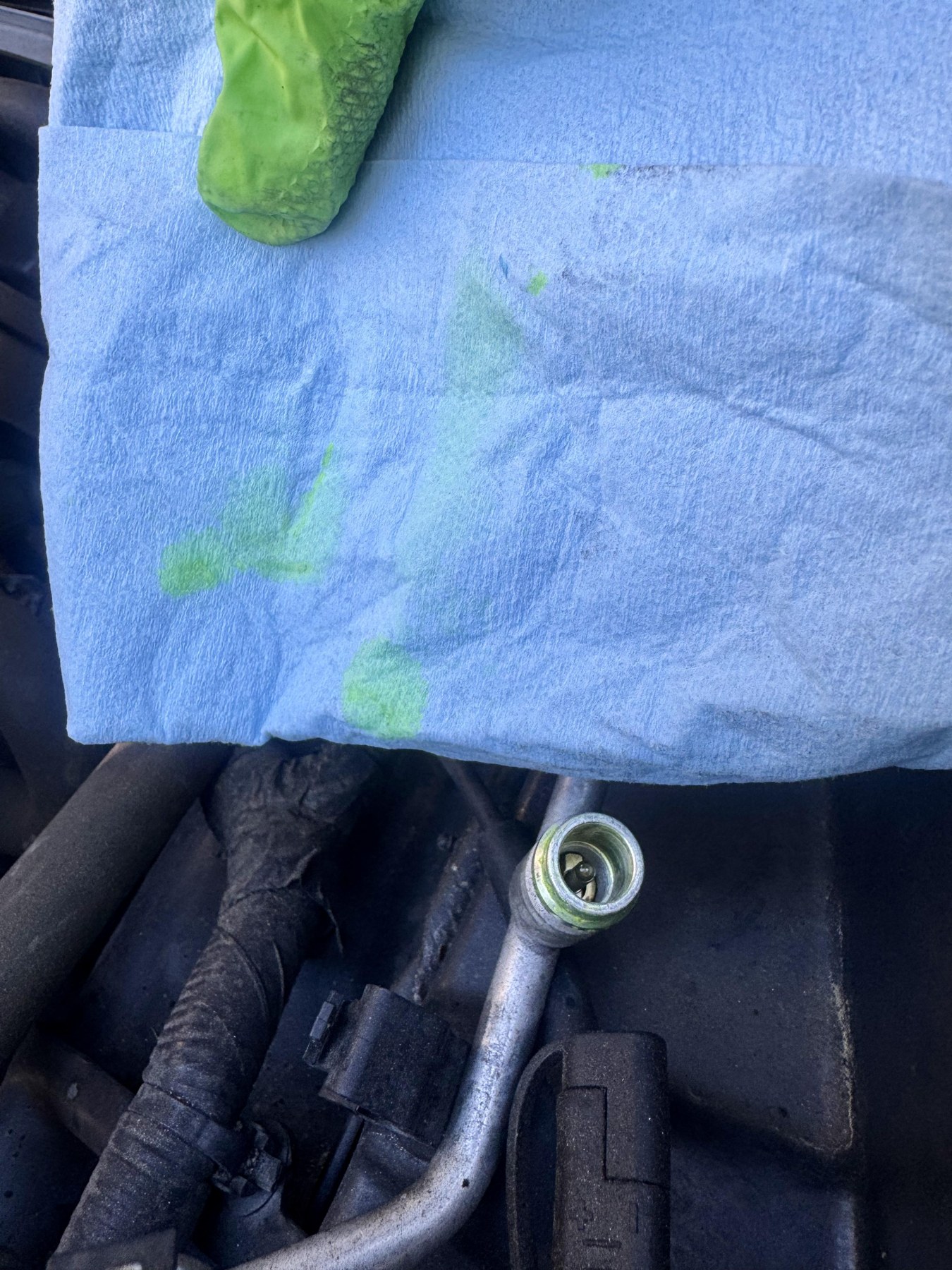

Oil sample on a blue shop towel above the Corvette A/C high-side service port. — Oil collected from the high-side service port appeared clean during visual inspection.

02 / OIL SAMPLE

A/C System Oil Check for Contamination

We collected an oil sample from the high-side service port to check for contamination. The sample looked clean during visual inspection.

This is a visual observation of the collected sample, not confirmation that the entire A/C system is free of contamination.

03 / REFRIGERANT QUALITY

Refrigerant Quality Check

We completed refrigerant quality testing with a refrigerant analyzer. The test results showed 100.0% R-134a.

The analyzer reported 0.0% for R-12, R-22, hydrocarbons, unknown refrigerant and air in the tested sample.

This result identifies the sampled refrigerant. It does not establish the correct refrigerant charge or verify cooling performance after repairs.

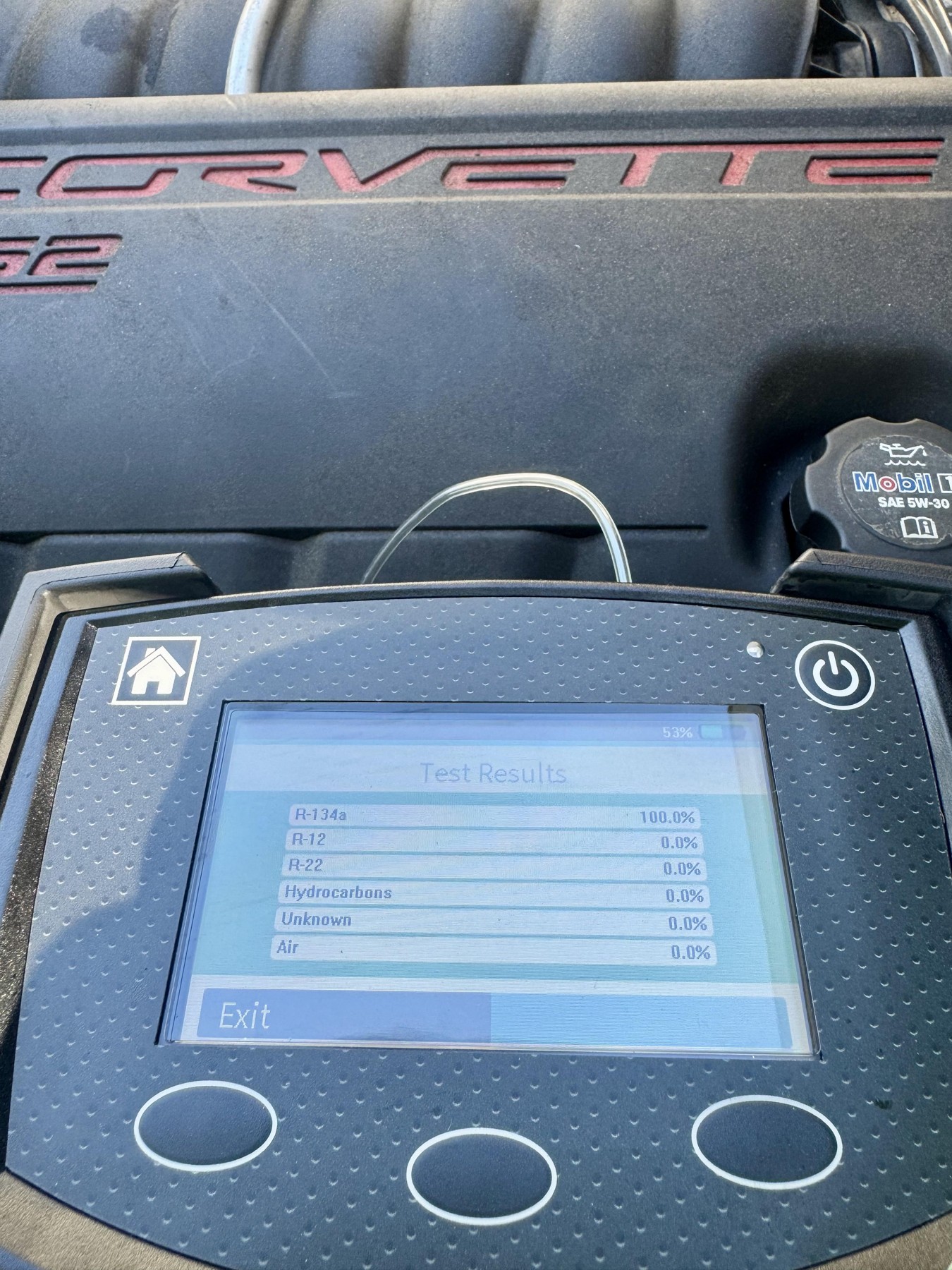

Refrigerant analyzer test results showing 100.0% R-134a and 0.0% for the other listed substances. — Completed refrigerant quality test: the analyzer displays 100.0% R-134a. Select the photo to view the result at full size.

04 / VEHICLE ACCESS

Driver’s Door Evaluation

We cleaned the key fob and verified its function using a scan tool. The vehicle and body control module (BCM) responded to the fob’s signal. The faulty component is the driver-side exterior door-release switch, which needs replacement.

Passenger and driver door-release comparison

Comparing the two sides helps document the access problem. When the passenger-side exterior release was pressed, the door latch operated and the scan tool indicated that operation. When the driver-side exterior release was pressed, there was no latch operation and no corresponding indication on the scan tool.

Passenger side

Passenger side: the door latch operates when the exterior release is pressed, and the scan tool indicates latch operation. Original audio retained.

Driver side

Driver side: pressing the exterior release produces no latch operation and no corresponding scan-tool indication. The driver-side exterior door-release switch needs replacement. Original audio retained.

Key-fob cleaning and internal inspection

We cleaned the key fob and then verified its signal using a scan tool. These photographs show both sides of the internal circuit board.

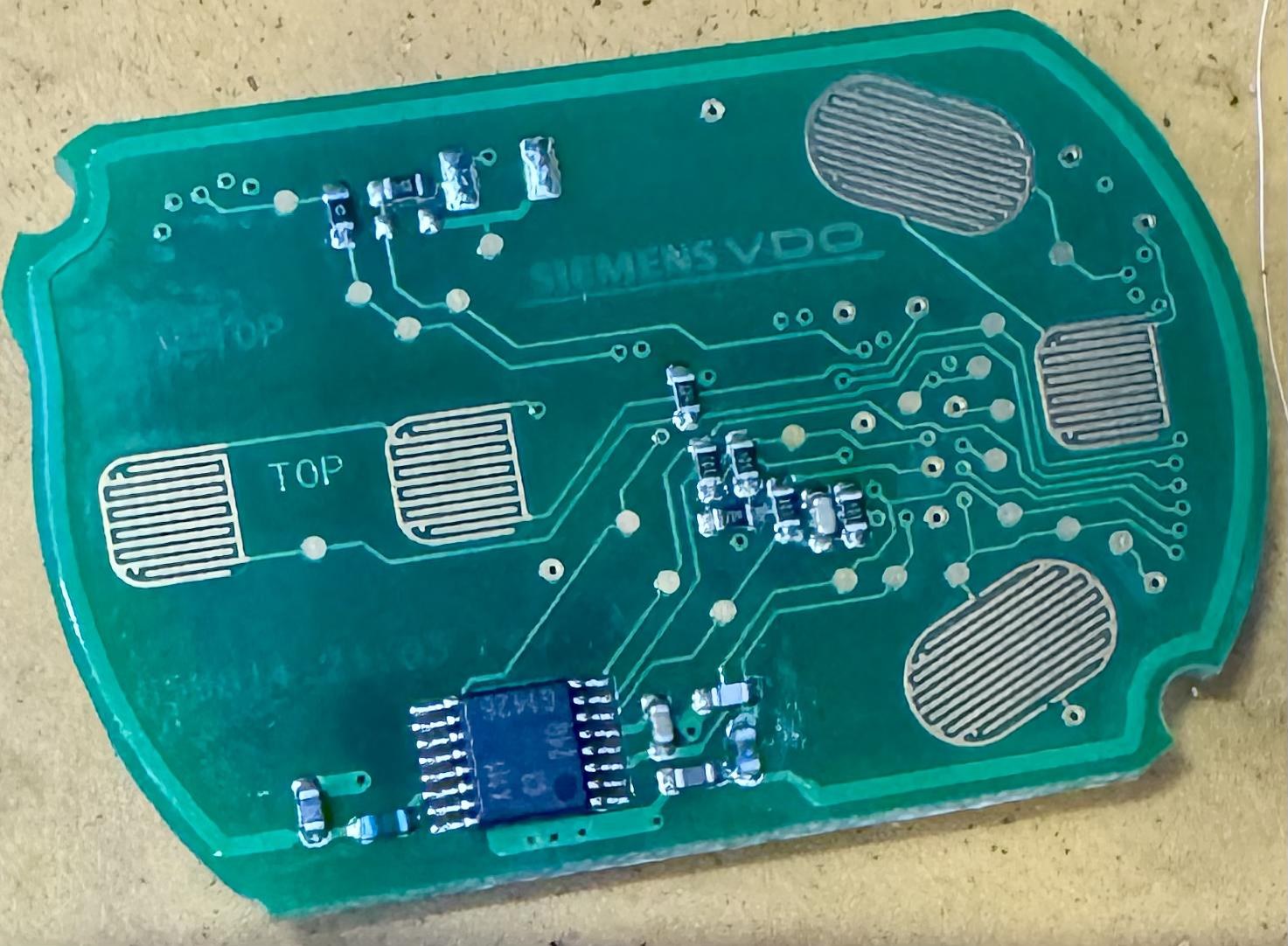

Internal button-contact side of the Corvette key-fob circuit board. — Button-contact side of the opened key fob, documented as part of the cleaning and inspection.

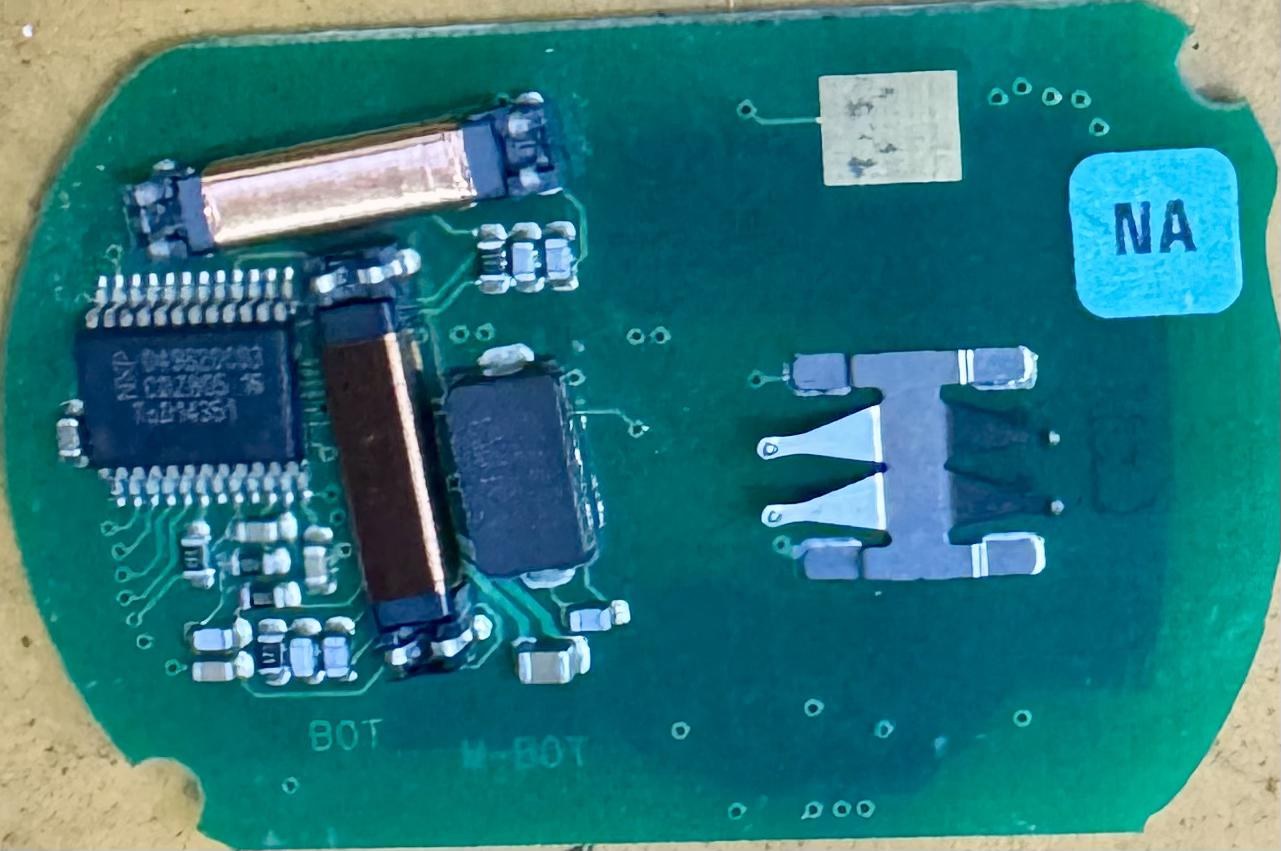

Reverse side of the Corvette key-fob circuit board with battery contacts and electronic components. — Reverse side of the key-fob circuit board, showing the battery contacts and electronics.

Key-fob button presses during scan-tool monitoring. The vehicle and body control module responded to the signal. Silent video; findings are described above.

Until the exterior door-release switch is replaced, the customer currently enters by opening the trunk and pulling the manual door release.

THE NEXT CHAPTER

From findings to follow-up.

The diagnosis is documented. Here’s what still needs attention before we can report the final outcome.

Repairs pending

A/C CLUTCH

Replace the damaged face.

The clutch face needs replacement. Inspect the remaining clutch components for additional damage.

Replacement pending

ADJACENT A/C LINE

Monitor before replacing.

The line is not currently leaking. A wait-and-see approach is warranted; replacement may be needed depending on its condition.

Monitor condition

DRIVER’S DOOR

Replace the release switch.

The faulty driver-side exterior door-release switch needs replacement. The key-fob signal responded during testing.

Replacement pending

POST-REPAIR UPDATES

Next up: the repair results.

Repairs are still pending. Once the work and follow-up checks are complete, this case study will be updated with the documented results.

Stand by for final results after repairs.

What the follow-up will cover

Work performedParts replaced and any additional findings from the clutch and line inspection.

A/C operationResults of post-repair cooling and line-condition checks, once performed.

Door-release operationDriver-side exterior release and scan-tool response after the switch repair, once checked.

No completed repair or successful outcome is being claimed at this stage.
